Working with merged cells

Worksheets may contain merged cells. XLSX.jl provides functions to identify the merged cells in a worksheet, to determine if a cell is part of a merged range and to determine the value of a merged cell range from any cell in that range.


julia> using XLSX

julia> f=XLSX.opentemplate("customXml.xlsx")
XLSXFile("customXml.xlsx") containing 2 Worksheets
            sheetname size          range
-------------------------------------------------
              Mock-up 116x11        A1:K116
     Document History 17x3          A1:C17

julia> XLSX.getMergedCells(f[1])
25-element Vector{XLSX.CellRange}:
 D49:H49
 D72:J72
 F94:J94
 F96:J96
 F84:J84
 F86:J86
 D62:J63
 D51:J53
 D55:J60
 D92:J92
 D82:J82
 D74:J74
 D67:J68
 D47:H47
 D9:H9
 D11:G11
 D12:G12
 D14:E14
 D16:E16
 D32:F32
 D38:J38
 D34:J34
 D18:E18
 D20:E20
 D13:G13

julia> XLSX.isMergedCell(f[1], "D13")
true

julia> XLSX.isMergedCell(f[1], "H13")
false

julia> XLSX.getMergedBaseCell(f[1], "E18") # E18 is a merged cell. The base cell in the merged range is D18.
(baseCell = D18, baseValue = "Here") # The base cell in the merged range is D18 and it's value is "Here".

It is also possible to create new merged cells:


julia> XLSX.isMergedCell(f[1], "F5")
false

julia> XLSX.isMergedCell(f[1], "J8")
false

julia> XLSX.mergeCells(s, "F5:J8")

julia> s["F5"] = pi
π = 3.1415926535897...

julia> XLSX.isMergedCell(f[1], "J8")
true

julia> XLSX.isMergedCell(f[1], "F5")
true

julia> XLSX.getMergedBaseCell(f[1], "J8")
(baseCell = F5, baseValue = 3.141592653589793)

It is not allowed to create new merged cells that overlap at all with any existing merged cells.

Warning

It is possible to write into any merged cell using XLSX.jl, even those that are not the base cell of the merged range. This is illustrated below:


julia> using XLSX

julia> f=XLSX.newxlsx()
XLSXFile("C:\...\blank.xlsx") containing 1 Worksheet
            sheetname size          range
-------------------------------------------------
            Sheet1 1x1           A1:A1


julia> s=f[1]
1×1 XLSX.Worksheet: ["Sheet1"](A1:A1)

julia> s["A1:A3"]=5
5

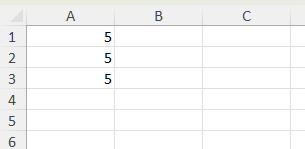

This produces the simple sheet shown.

image|320x500

Merging the three cells A1:A3 sets the cells A2 and A3 to missing just as Excel does.

julia> s["A1"]
5

julia> s["A2"]
5

julia> s["A3"]
5

julia> XLSX.mergeCells(s, "A1:A3")
0

julia> s["A1"]
5

julia> s["A2"]
missing

julia> s["A3"]
missing

image|320x500

However, even after the merge, it is possible to explicitly write into the merged cells. These written values will not be visible in Excel but can still be accessed by reference.

julia> s["A2"]="text here now"
"text here now"

julia> s["A1"]
5

julia> s["A2"]
"text here now"

julia> s["A3"]
missing

julia> XLSX.getMergedBaseCell(s, "A2")
(baseCell = A1, baseValue = 5)

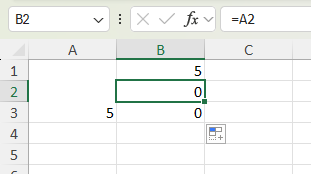

The cell A2 remains merged, and this is how Excel displays it. The assigned cell value won't be visible in Excel, but it can be referenced in a formula as shown here, where cell B2 references cell A2 in its formula ("=A2"):

image|320x500

Assigning values to cells in a merged range like this is prevented in Excel itself by the UI although it is possible using VBA. There is currently no check to prevent this in XLSX.jl. See #241
